FEATURES AND BENEFITS

- 14 Sizes from 0.15 to 20 MMBtu/h (40 to 5275kW).
- Up to 50:1 Turndown with fixed air (10:1 on Ratio).
- Modulating or high/low pulse control.
- Preheated Combustion Air Capability (to 1000°F  (540°C) for maximum efficiency.
- Max Furnace Temp:  2800°F (1540°C).
- Alloy, Ceramic, or Refractory combustor.
- Medium and High Velocity outlet options available to suit the application needs.
- Standard Emissions.
- Flame Speeds up to 680 ft/s (207 m/s) for exceptional stirring of furnace atmosphere and temperature uniformity.
- Fuel Flexibility with the same nozzle - Natural Gas, Propane, Butane, Coke Oven Gas - Other Gases on Request.
- Up to 50% excess air at high fire.
- Reducing/excess fuel capability (0.9 lambda standard, lower possible).
- Integrated metering orifices save money, simplify piping, and make setup quick and easy.
- Independently rotatable air and fuel inlets.
- NPT or BSP thread connection options .



TOP APLICATION

- Metals (tempering, hardening, annealing, galvanizing, reheating, forging, etc.)
- Non-ferrous Melting.
- Incineration/Thermal Oxidizers.
- Ceramic Kilns.
- Ladle/tundish heaters .

MODELS

Part Number  Description
BIC/BICO 050  50 kW BIO/BIC
BIC/BICO 065  65 kW BIO/BIC
BIC/BICO 080  80 kW BIO/BIC
BIC/BICO 100  100 kW BIO/BIC
BIC/BICO 125  125 kW BIO/BIC
BIC/BICO 140  140 kW BIO/BIC
BIC/BICO 165 165 kW BIO/BIC
BIC/BICO 200  200 kW BIO/BIC
BIC/BICO 240-320 240-320 kW BIO/BIC

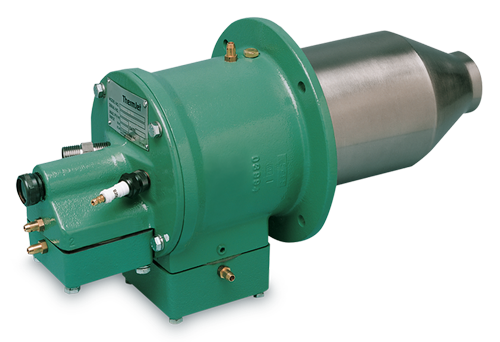

ThermJet
