Foot valves are used for pumping fluids in order to filter particles.

APPLICATION

General uses : hydraulic or pneumatic system in industry, ideal for hot/cold water, oils, compressed air.

GENERAL CHARACTERISTICS

From to DN 1/2” to DN 4”:

  + Low head loss.

  + Excellent hydraulic results.

  + Silent functionning.

From DN 50 to DN 150:

  + Excellent tightness.

  + Low head loss.

  + Extremely reliable.

  + Excellent hydraulic result.

  + Simplicity in mounting and use.

From DN 200 to DN300 on request.

WORKING CONDITIONS

- Maximum working pressure : DN 1/2" - 1" : 16 bar. DN 1"1/4 - 2" : 10 bar. DN 2"1/2 - 4" : 8 bar. - Maximum temperature : 0°C / + 65°C.

- Maximum working pressure : 16 bar. - Maximum temperature : + 100°C.

MODELS

1. CC1142 - Foot type check valve – brass – female BSP

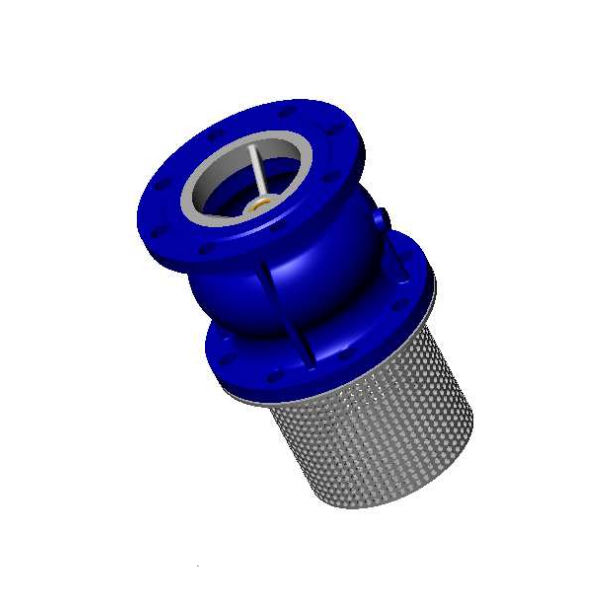

2. CC3241 - Foot type check valve – cast iron – flanged

Foot valve
