This one piece body knife gate valve is watertight in both directions. This model is mainly used for slightly contaminated fluids like for water supply.

APPLICATION

General use: pulp production, water, water treatment, waste water, wine-producing...


GENERAL CHARACTERISTICS

- Non rising bi-directional tight knife gate valve.

- Function ON/OFF or regulation.

- Between flanges connection according to ISO PN10.

- Complete Sealed by nitrile elastomer seat in standard.

- Epoxy coated body RAL 6005, thickness 150 microns.

- Operating by handwheel.

WORKING CONDITIONS

- Maximum working pressure :

     + DN50-200 : 10 bar

     + DN250 : 8 bar

     + DN300 : 6 bar

     + DN350-400 : 4 bar

- Maximum working temperature : -10°C / +90°C

MODELS

1. VGB3400-001 - Bidirectionnal type knife gate valve – cast iron body – stainless steel 304 gate – non rising Handwheel

2. VGB3400-03 - Bidirectionnal type knife gate valve – cast iron body – stainless steel 304 gate – double acting pneumatic actuator

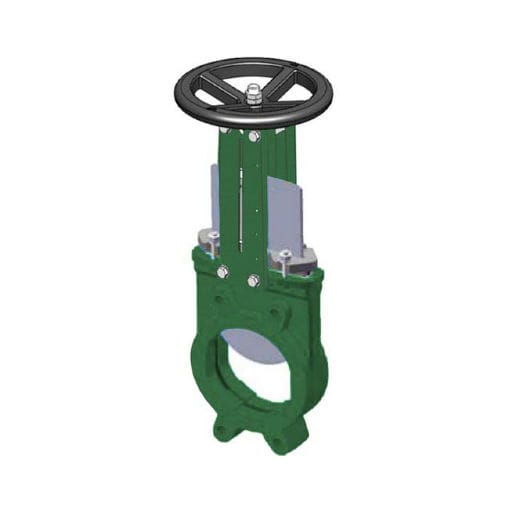

Bidirectional knife gate valve
