We offer high performance double or triple eccentric valves to respond to the most restrictive operating conditions in terms of pressure and temperature.
More informations about high performance butterfly valve (READ MORE...)
APPLICATION
General use : for all common fluids.
GENERAL CHARACTERISTICS
- From DN50 to DN150.
- 100% tightness.
- Wafer type for mounting between ISO PN25 flanges.
- Double eccentric bidirectional with preferential flow direction indicated by the arrow.
- Fire safe according to ISO 10497 : 2010.
- ISO 5211 mounting pad.
- Stainless steel CF8M disc, full crossing stem.
- 10 positions ductile iron handle, with locking device.
WORKING СONDITIONS
- Maximum working temperature : -29°C / +210°C
- Maximum working pressure : 25 bar.
MODELS
1. VP5451-02PTF - Wafer type butterfly valve double eccentric type PN25 – steel body – stainless steel disc – lever operator

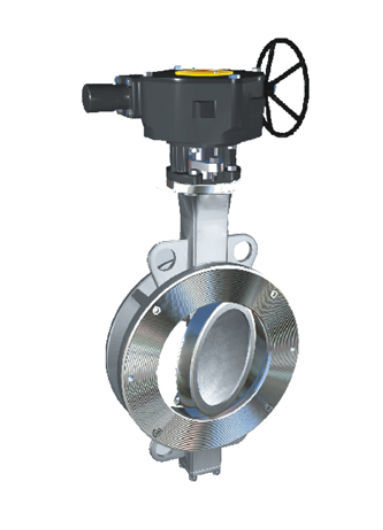

2. VP5451-08PTF - Wafer type butterfly valve double eccentric type PN25 – steel body – stainless steel disc – gearbox operator
3. VP6451-02PTF - Wafer type butterfly valve double eccentric type PN25 – stainless steel body and disc – lever operator
4. VP6451-08PTF - Wafer type butterfly valve double eccentric type PN25 – stainless steel body and disc – gearbox operator
5. VP5441-02 - Wafer type butterfly valve double eccentric type ASA150 – steel body – stainless steel disc – lever operator
6. VP5441-08 - Wafer type butterfly valve double eccentric type ASA150 – steel body – stainless steel disc – gearbox operator
7. VP5447-02 - Wafer type butterfly valve – steel body – metal/metal seat – no 100% tightness – lever operator
8. VP6441-02 - Wafer type butterfly valve double eccentric type ASA150 – stainless steel body and disc – lever operator
9. VP6441-08 - Wafer type butterfly valve double eccentric type ASA150 – stainless steel body and disc – gearbox operator
10. VP6447-02 - Wafer type butterfly valve – stainless steel body – metal/metal seat – no 100% tightness – lever operator
