They aim to show the flow of a fluid. They test it either via transparency for coloured liquids, or with the help of a mechanical indicator such as a ball, a blade or a propeller.

APPLICATION

Fluid flow control in piping systems. Common use without risk of corrosion.

GENERAL CHARACTERISTIQUES

- From DN15 to DN200.

- Made of brass or bronze. or cast iron.

- Double glass type. or Flanged double glass type.

WORKING CONDITIONS

- Maximum working pressure: 16 bar.

- Maximum temperature (standard ball) : +5°C / +180°C.

- Fluid temperature (PTFE ball) : +5°C / +120°C.

MODELS

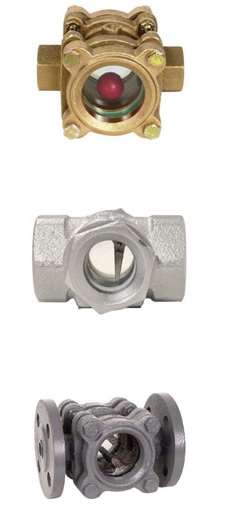

1. CD2140 - Sight glass with ball – brass – female BSP

2. CD3140 - Sight flow indicator – cast iron – female BSP

3. CD3241 - Sight flow indicator – cast iron – flanged

Flow indicators
