Strainers are used for water supply and distribution networks.

The purpose of the strainer is to ensure the retention of particles in the pipework. The filtration is determined by the stainless steel mesh size. Regular emptying of the basket is required in order to avoid particles accumulating in the screen.

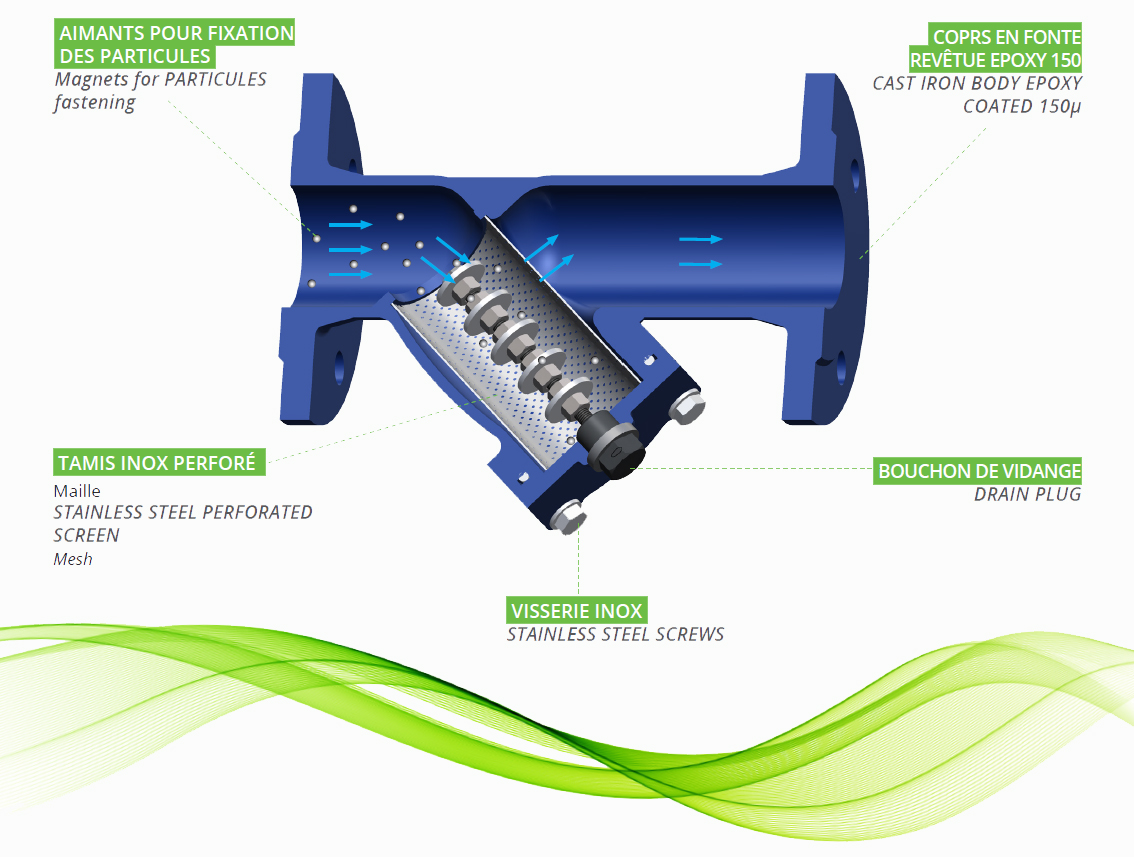

Magnet Strainer (READ MORE.....)

APPLICATION

Waste water filtering systems.

GENERAL CHARACTERISTICS

- From DN15 to DN400.

   + From DN 1/2" to DN 4" : - Brass "Y" body, brass bonnet. - Dismountable stainless steel strainer. PN16

   + From DN15 tp DN400 : Cast iron "Y" body, cast iron bonnet. - Dismountable stainless steel strainer. Flanged ends PN 16.

WORKING CONDITIONS

- Maximum working pressure :16 bar

- Maximum working temperature: -15°C / 140°C

MODELS

1. F1141 - Strainer PN16 – brass – female BSP

2. F2143 - Strainer PN20 – bronze – female BSP

3. F1144 - Strainer PN16 – brass – female BSP – ACS

4. F2142 - Strainer with drain plug PN16 – brass – female BSP

5. F5150 - Strainer – steel – female BSP

6. F6140 - Strainer – stainless steel – female BSP

7. F3240-EP - Strainer PN16 – cast iron – flanged

8. F3240TAMIS-IN - Stainless steel screen for F3240-EP

9. F3242 - Strainer PN16 – cast iron – flanged – ACS

10. F3240N - Strainer PN16 – cast iron – flanged – high temperature

11. F3240NA - Strainer PN16 – cast iron – flanged – with magnetic collector

12. F4250 - Strainer PN25 – cast iron – flanged

13. F4260 - Strainer PN40 – cast iron – flanged

14. F5240 - Strainer – steel – flanged

15. F6240 - Strainer – stainless steel – flanged

16. F4200 - H-strainer PN10 – ductile iron – flanged

17. F4240 - H-strainer PN16 – ductile iron – flanged
