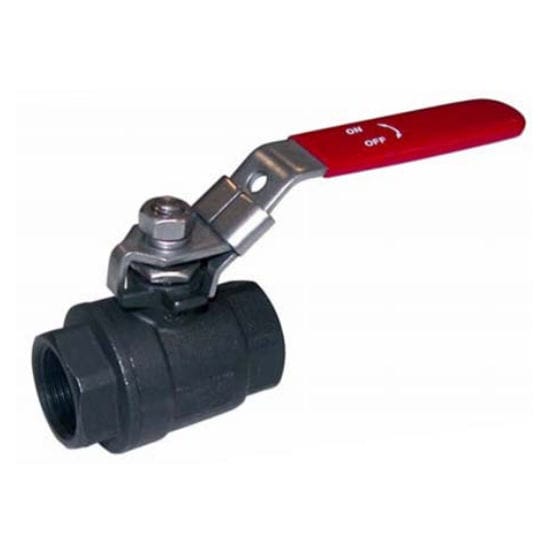

The ball valve is a full bore quarter turn valve for an on/off application. It can be manual or automatic (electric or pneumatic). The variety of seats and body materials allows it to respond to multiple applications in the industry.

APPLICATION

General use: Hydraulic, sanitary, irrigation and comprimed air industries.

GENERAL CHARACTERISTICS

- PN10 or PN16.

- Range from DN 2"1/2 to DN4".

- Standard bore.

- PTFE packing

- Steel handle.

- Connection BSP according to ISO 228-1.

WORKING CONDITIONS

- Maximum working temperature : -10°C / + 100°C

- Maximum working pressure :  10 bar / 16 bar.



MODELS

1. BS1143 - FeMale BSP ball valve ACS

2. BS1145 - Standard bore female BSP ball valve – ACS

3. BS1143P - Full bore female BSP ball valve with drain plug – ACS

4. BS1652 - Full bore male-femelle BSP ball valve

5. BS1143R - Full bore BSP female ball valve with stem extension – brass CW617N

6. BS1160 - Full bore BSP female ball valve – brass CW617N dry cleaned

7. BS1161NPT - Full bore NPT female ball valve – brass CW617N

8. BS1165FFL - Full bore BSP female ball valve heavy Type

9. BS1165FFP - Full bore BSP female ball valve heavy Type with Butterfly Lever

10. BS1165MFL - Full bore BSP male-female ball valve heavy Type

11. BS1165MFP - Full bore BSP male-female ball valve heavy Type with Butterfly Lever

12. BS1165MML - Full bore BSP male ball valve heavy Type

13. BS1165MMP - Full bore BSP male ball valve heavy Type with Butterfly Lever

14. BS1169FFL - Full bore BSP female ball valve NF – ACS

15. BS1169FFP - Full bore BSP female ball valve with Butterfly Lever NF – ACS

16. BS1169MFL - Full bore BSP male-female ball valve NF – ACS

17. BS1169MFP - Full bore BSP male-female ball valve with Butterfly Lever NF – ACS

18. BS1169MML - Full bore BSP male ball valve NF – ACS

19. BS1169MMP - Full bore BSP male ball valve with Butterfly Lever NF – ACS

20. BS1169FFR - Full bore BSP female ball valve with stem exTension NF – ACS

21. BS1166 -  3 ways BSP female ball valve L port

22. BS1167 -  3 ways BSP female ball valve T port

23. BSMV1100FF - Mini ball valve femelle BSP

24. BSMV1100MF - Mini ball valve Male/Femelle BSP

25. BS1142 -  BSP female Brass ball valve with Butterfly Lever with built-in Check valve

26. RP1105 - BSP male bibcock ball valve with lever

27. RP1105P - BSP male bibcock ball valve with butterfly lever

28. BS1240 -  Full bore Brass ball valve with flanges

Brass Ball valves
