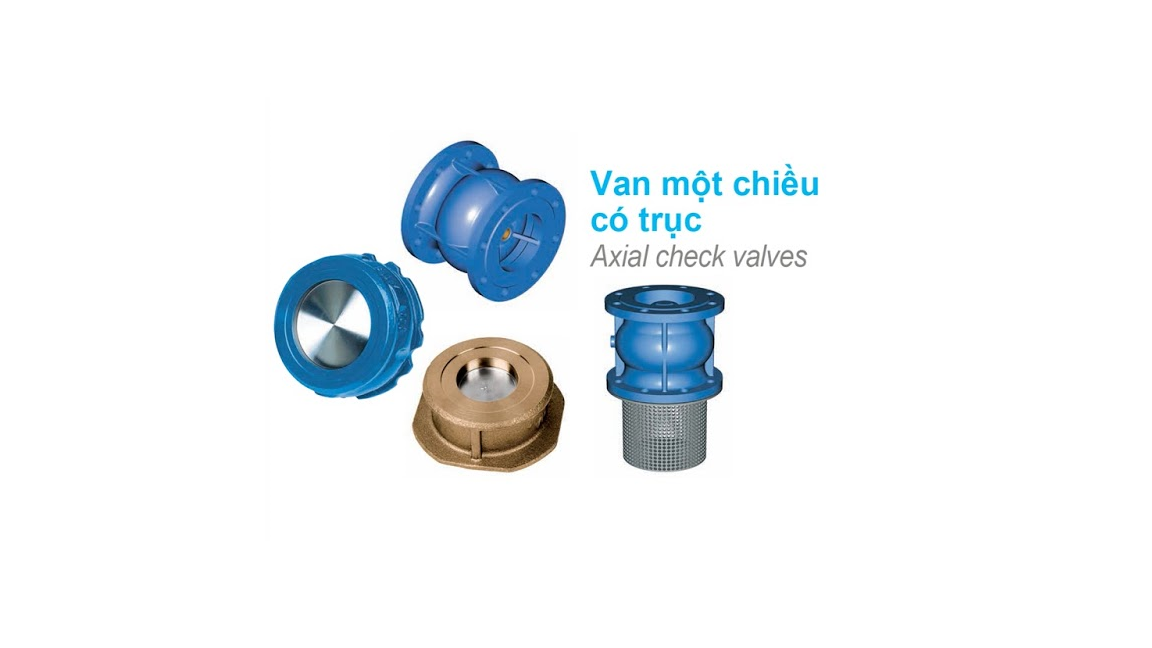

Axial check valves are non return valves. The disc moves in the axis of the pipework. The assembly can be done in any position: horizontal fluid or descending vertical (depending which kind of check valve) or ascending.

Quick closing non-return valve (READ MORE....)

APPLICATION

-  Water pumping,
-  Pump discharge,
-  Industries and petrochemical industry.

-  Water distribution.

GENERALES CHARACTERISTICS

- From DN15 to DN1800.

Prevents water hammer with high overpressure values,
- Operates silently,
- Damped closing due to obturator elasticity,
- Good sealing in closed position,
- Optimum hydraulic operation: flow partialization and
concentricity,
- Small dimensions: valve width ~DN/2 (for DN ³ 200mm – 8»).

WORKING CONDITIONS

Maximum working pressure :

- DN 3/8" - 1" : 12 bar

- DN 1"1/4 - 2" : 10 bar

- DN 2"1/2 - 4" : 8 bar

- 16 bar (DN50-300) 10 bar (DN350-600).

Maximum working temperature : -10°C / +130°C.

MODELS

1. CA1100 - Axial type check valve – brass – female BSP

2. CA1101 - Axial type check valve – brass – female BSP – ACS

3. CA1103 - Axial type check valve – brass – female BSP

4. CA1102 - Antipollution check valve – brass – female BSP

5. CA7442 - Axial type check valve with spring return – between flanges

6. CA6460 - Axial check valve – stainless steel 316 – between flanges

7. CA6461 - Stainless steel axial type check valve PN40 – between flanges – high temperature

8. CA6170BSP - Axial type check valve – stainless steel 316 – female BSP

9. CA6170BW - Axial type check valve – stainless steel 316 – butt welding end

10. CA6170NPT - Axial type check valve – stainless steel 316 – female NPT

11. CA6170SW - Axial type check valve – stainless steel 316 – socket welding end

12. CA6190 - Axial ball check valve – stainless steel 316 – female BSP

13. CA3241 - Axial type check valve – cast iron – flanged

14. CA3242 - Axial type check valve – cast iron – flanged – ACS

15. CA4251 - Flanged cast iron axial type check valve PN25

16. CA4261 - Flanged cast iron axial type check valve PN40

17. CA4400 - Quick closing non return valve PN10 DN50 – DN500

18. CA4200 - Quick closing non return valve PN10 DN600 – DN1800
