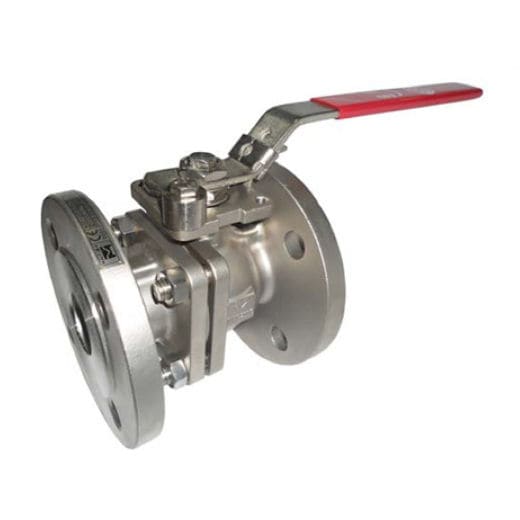

The ball valve is a full bore quarter turn valve for an on/off application. It can be manual or automatic (electric or pneumatic). The variety of seats and body materials allows it to respond to multiple applications in the industry.

APPLICATION

General use : Chemical and pharmaceutical industries, petrochemical industries, hydraulic installation, compressed air.

GENERAL CHARACTERISTICS

- Full bore, anti blow-out stem.

- PTFE packing, locking device,

- solid ball, 2 pieces type.

- Maybe use : with electric actuator 24VAC/VCC or with electric actuator 220VAC or pneumatic actuator

- From DN15 to DN150.

WORKING CONDITIONS

- Maximum working pressure :

63 bar from DN1/4" to DN3/4"



 50 bar from DN1" to DN1"1/4



 40 bar from DN1"1/2 to DN2"



25 bar from DN2"1/2 to DN3"



 16 bar for DN4"

- BALL VALVE WITH ELECTRIC ACTUATOR :

        + Working temperature: - 20°C / +160°C.

        + Working pressure : 140 bar from DN8 to DN15

                                          105 bar from DN20 to DN25

                                          64 bar from DN32 to DN50

                                          25 bar up to DN100

MODELS

1. BS6179 - Full bore stainless steel BSP female ball valve

2. BS6179-V14 - One piece stainless steel ball valve with electric actuator 24VAC/VCC

3. BS6179-V24 - One piece stainless steel ball valve with electric actuator 220VAC

4. BS6162 - Reduce bore female BSP ball valve

5. BS6571 - Ruced bore male/female BSP stainless steel ball valve

6. BS6162L - Standard bore 3 ways ball valve – L port

7. BS6162T - Standard bore 3 ways ball valve – T port

8. BS6377BSP - Full bore 3 pieces ball valve – Female BSP

9. BS6377BW - Full bore 3 pieces ball valve – BW

10. BS6377SW - Full bore 3 pieces ball valve – SW

11. BS6379BSPN03 - Stainless steel 3 pieces ball valve with double acting pneumatic actuator – female BSP

12. BS6379BWN03 - Stainless steel 3 pieces ball valve with double acting pneumatic actuator – BW

13. BS6379SWN03 - Stainless steel 3 pieces ball valve with double acting pneumatic actuator – SW

14. BS6379BSPN07 - Full bore 3 pieces ball valve with single acting pneumatic actuator – Female BSP

15. BS6379BWN07 - Full bore 3 pieces ball valve with single acting pneumatic actuator- BW

16. BS6379SWN07 - Full bore 3 pieces ball valve with single acting pneumatic actuator- SW

17. BS6378BSP - 3 pieces femelle BSP stainless steel ball valve – ISO mounting plate – fire safe

18. BS6378BW - 3 pieces butt welding stainless steel ball valve – ISO mounting plate – fire safe

19. BS6378NPT - 3 pieces femelle NPT stainless steel ball valve – ISO mounting plate – fire safe

20. BS6378SW - 3 pieces socket welding stainless steel ball valve – ISO mounting plate – fire safe

21. BS6440 - Between flanges stainless steel ball valve

22. BS6260 - 3 pieces body stainless steel flanged ball valve

23. BS6261 - 2 pieces body stainless steel flanged ball valve – fire safe

24. BS6241L - 3 ways flanged stainless steel ball valve – L port

25. BS6241T - 3 ways flanged stainless steel ball valve – T port

26. BSA6241 - 3 pieces body Stainless steel ball valve with flanges PN20/ASA150





Stainless steel ball valves
