Tilting type check valves are mainly used on drinking water supply networks and sewage pipelines. They work with the aid of a counterweight, which can be equipped with a hydraulic damper to cushion the disc during closing.

APPLICATION

General uses: drinkable water, dirty fluids, industry.

GENERAL CHARACTERISTICS

- Design according to NF EN 12334.

- Range : from DN 200 to DN 1000.

- Low head losses.

- Maintenance free.

- Mounting horizontally or vertically.

- Bearings self lubrificated.

- With or without counterweight.

WORKING CONDITIONS

- Maximum working pressure : 16 bar.

- Maximum temperature : -10°C / + 80°C.

MODELS

1. CP4241 - Tilting type check valve with counterweight and hydraulid damper PN16 – flanged

2. CP4243 - Tilting type check valve with counterweight PN10/16

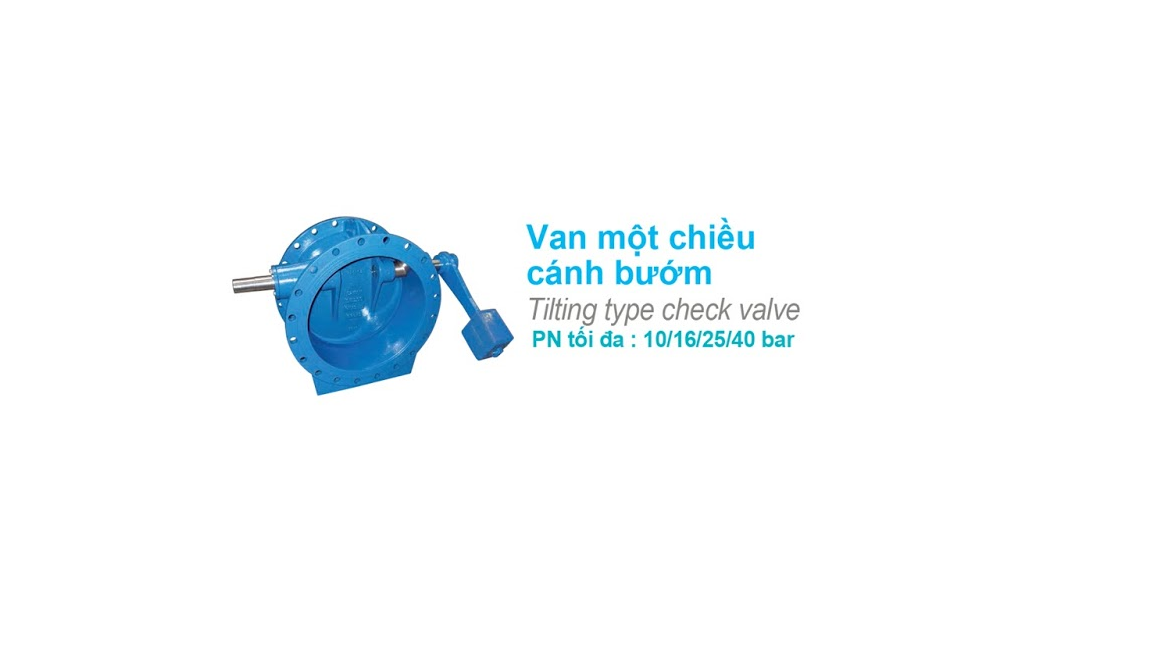

Tilting type check valve
