The Tecflon range of butterfly valves is able to respond to chemical applications thanks to a PTFE lined disc and a PTFE sleeve on an elastomer support.

More informations about PTFE lined butterfly valve (READ MORE...)

APPLICATION

General use : for corrosive fluids (acids …)

GENERAL CHARACTERISTICS


- Two piece-body.
- Tightness in both ways.
- Centred disc.
- 1 piece stem and butterfly.

- From DN40 to DN300.

WORKING CONDITIONS

- Maximum working temperature : -20°C / +190°C.

- Maximum working pressure: 16 bar for DN125 and DN150

                                                10 bar from DN200 to DN300



MODELS

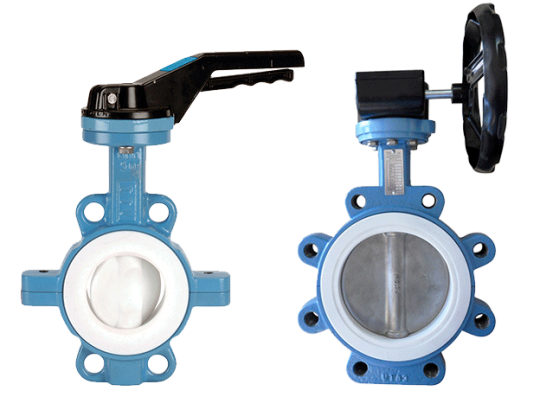

1. VP4649-02PTFE - Lugged type butterfly valve – ductile iron body – stainless steel 316 disc – lever operator

2. VP4649-08PTFE- Lugged type butterfly valve – ductile iron body – stainless steel 316 disc – gearbox operator

3. VP4649R-02PTFE - Lugged type butterfly valve – ductile iron body – stainless steel 316 disc PFA lined – lever operator

4. VP4649R-08PTFE - Lugged type butterfly valve – ductile iron body – stainless steel 316 disc PFA lined – gearbox operator

Tecflon – PTFE lined butterfly valve
