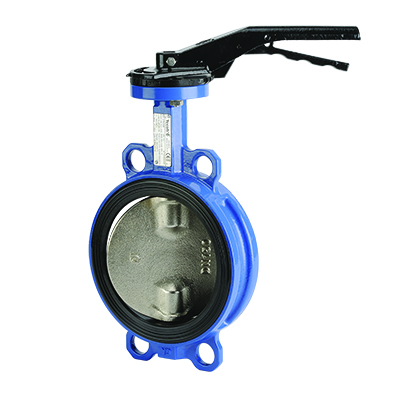

BUTTERFLY VALVE WITH HANDLE

APPLICATION

General use: water, pressurized air, acids, etc. "Non suitable for steam application"

CARACTERISTIQUES GENERALES

- Design according with BS EN 593.
- Tightness in both ways. Wafer type with smooth ears.
- Flexible sleeve adapted to the shape of the body assures regular torque.

- High and low semi stem giving a high low coefficient, machined disc on periphery

giving a low and regular torque.

- Unejectable stem, mounting flange according to ISO 5211.
- From DN40 to DN300.

WORKING CONDITIONS

- Maximum working pressure : 16 bar.

- Maximum working temperature : -15°C / +130°C.

- Peak temperature: -30°C / +150°C.

MODELS

1. VPI4448-02 - Wafer type butterfly valve – ductile iron body and disc – lever operator

2. VPI4449-02 - Wafer type butterfly valve – ductile iron body – stainless steel disc – lever operator

3. VPI4449-02EPA - Wafer type butterfly valve – ductile iron body – stainless steel disc – lever operator – ACS

4. VPI4648-02 - Lugged type butterfly valve – ductile iron body and disc – lever operator

5. VPI4649-02 - Lugged type butterfly valve – ductile iron body – stainless steel disc – lever operator.

6. VPI4649-02EPA - Lugged type butterfly valve – ductile iron body – stainless steel disc – lever operator – ACS

7. VPI464916-02EPA - Lugged type butterfly valve PN16 – ductile iron body – stainless steel disc – lever operator – ACS.

8. VPI4448-08 - Wafer type butterfly valve – ductile iron body and disc – gearbox operator.

9. VPI4449-08 - Wafer type butterfly valve – ductile iron body – stainless steel disc – gearbox operator.

10. VPI4648-08 - Lugged type butterfly valve – ductile iron body and disc – gearbox operator.

11. VPI4648-08 - Lugged type butterfly valve – ductile iron body and disc – gearbox operator.

12. VPI4448-N03 - Wafer type butterfly valve – ductile iron body and disc – double acting pneumatic actuator.

13. VPI4449-N03 - Wafer type butterfly valve – ductile iron body – stainless steel disc – double acting pneumatic actuator.

14. VPI4449-N03 - Wafer type butterfly valve – ductile iron body – stainless steel disc – double acting pneumatic actuator.

15. VPI4649-N03 - Lugged type butterfly valve – ductile iron body – stainless steel disc – double acting pneumatic actuator.

16. VPI4448-N07 - Wafer type butterfly valve – ductile iron body and disc – single acting pneumatic actuator NC.

17. VPI4449-N07 - Wafer type butterfly valve – ductile iron body – stainless steel disc – single acting pneumatic actuator NC.

18. VPI4648-N07 - Lugged type butterfly valve – ductile iron body and disc – single acting pneumatic actuator NC.

19. VPI4649-N07 - Lugged type butterfly valve – ductile iron body – stainless steel disc – single acting pneumatic actuator NC.

20. VPI4448-BX4 - Wafer type butterfly valve – ductile iron body and disc – BERNARD electric actuator.

21. VPI4449-BX4 - Wafer type butterfly valve – ductile iron body – stainless steel disc – BERNARD electric actuator.

22. VPI4648-BX4 - Lugged type butterfly valve – ductile iron body and disc – BERNARD electric actuator.

23. VPI4648-BX4 - Lugged type butterfly valve – ductile iron body and disc – BERNARD electric actuator.

24. VPI4448-UX4 - Wafer type butterfly valve – ductile iron body and disc – AUMA electric actuator.

Tecfly VPI – Butterfly valve with sleeve
