APPLICATION

General use : water, air, acids, etc. "Non suitable for steam application".

GENERAL CHARACTERISTICS

- Design according with EN 593.

- Tightness in both ways. Wafer type with smooth ears.

- Flexible sleeve adapted to the shape of the body assures low operating torque.

- High and low semi stem giving a high flow coefficient, machined disc on periphery giving a low

and regular torque. Unejectable stem, mounting flange according to ISO 5211.

- From DN40 to DN300.

WORKING CONDITIONS

- Maximum working pressure : 16 bar.

- Maximum working temperature : -15°C / +130°C.

- Peak temperature: -30°C / +150°C.

MODELS

1. VPE3448-02 - Wafer type butterfly valve – cast iron body – ductile iron disc – lever operator.

2. VPE4448-02 - Wafer type butterfly valve – ductile iron body and disc – lever operator.

3. VPE3449-02 - Wafer type butterfly valve – cast iron body – stainless steel disc – lever operator.

4. VPE4449-02 - Wafer type butterfly valve – ductile iron body – stainless steel disc – lever operator.

5. VPE3648-02 - Lugged type butterfly valve – cast iron body – ductile iron disc – lever operator.

6. VPE4648-02 - Lugged type butterfly valve – ductile iron body and disc – lever operator.

7. VPE3649-02 - Lugged type butterfly valve – cast iron body – stainless steel disc – lever operator.

8. VPE4649-02 - Lugged type butterfly valve – ductile iron body – stainless steel disc – lever operator.

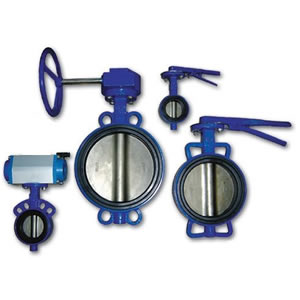

Tecfly VPE – Butterfly valve with sleeve
