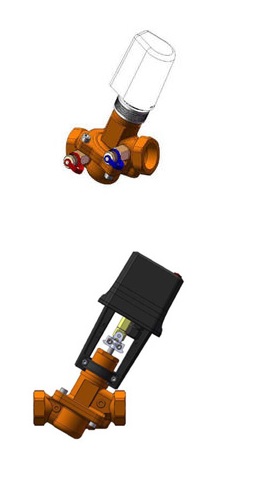

APPLICATION

General use : HVAC system, air conditioning, and refrigeration system.

GENERAL CHARACTERISTICS

- From DN 1" to DN 2".

- Small size convenient to install. High close off pressure,

low leakage. Flow rate range : 2...8m3/h. Forged brass body.

- Threaded connection; Leakage rate : 0.02% of Kvs.

- Operating by proportional control actuator with standard features

 with manual function. Regulating range: 30% - 100%. Input/Output

signal: 0(2) - 10VDC, 0(4) - 20mA. Power supply: 24VAC 50/60Hz.

- Protection level: IP54.

WORKING CONDITIONS

- Maximum working pressure : 16 bar

- Maximum working temperature : - 10°C / +120 °C

- Ambient temperature: -20°C / +50°C.

On/off control model PICV1140
