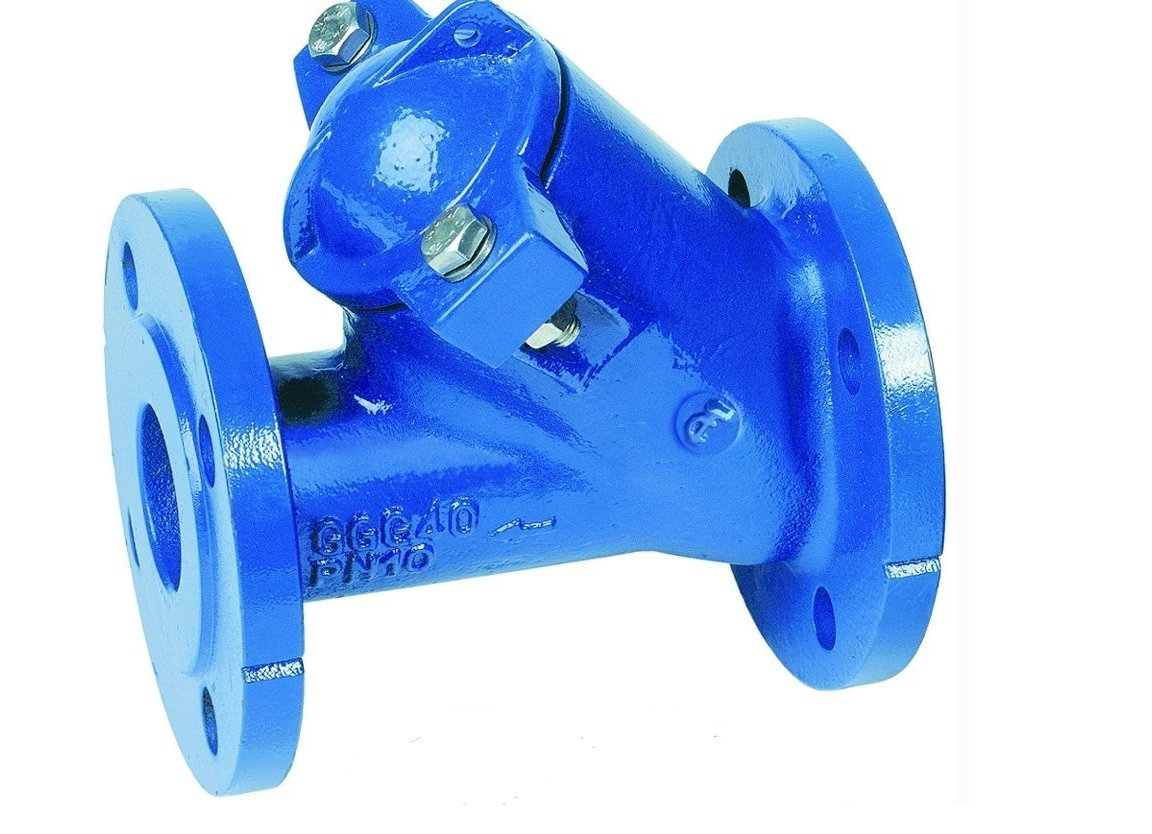

The ball check valve is a valve mainly designed for viscous solids-laden media and sewage. Ball check valves can work on horizontal or vertical ascending position.

APPLICATION

General uses: waste water, stickly fluids, raising water (purification, water treatment, pumping...)

GENERAL CHARACTERISTICS

- Design in accordance with standard NF EN 12334.

- Range: From DN 25 to DN 600

WORKING CONDITIONS

- Maximum working pressure : 10 bar

- Maximum temperature : + 80°C.

MODELS

1. CBL4140 - Ball check valve – ductile iron – female BSP

2. CBL3240 - Ball check valve – cast iron – flanged

3. CBL6149 - Ball check valve – stainless steel – female BSP

4. CBL6240 - Ball check valve – stainless steel – flanged





Ball check valve
