FEATURES

- For use with natural gas, liquid propane (LP) gas, or air.

- Diaphragm-actuated safety-limit switch.

- Switch can be wired to turn on alarm.

- C6097A models break control circuit at setpoint on pressure fall.

- C6097B models break control circuit at setpoint on pressure rise.

- Lockout with manual reset and recycle options.

- Lockout models have external manual reset button.

- Removable transparent cover protects scaleplate and adjusting knob.

- Pipe tappings allow selection of positive pressure (air only) or venting connections (NPT mount only).

- 1/4 in. NPT or flange mount models for direct mounting to Honeywell Integrated Valve Train.

- Optional switch position indicator lamp available.

- IP54 enclosure standard.

- Ranges: 0.4 to 5 in.wc, 3 to 21 in.wc, 12 to 60 in.wc or 1.5 to 7 psi.

- Surge orifice.

- Integral vent limiter on all models.

APPLICATION

- Safety devices used in positive-pressure or differential-pressure systems to sense gas or air pressure changes.

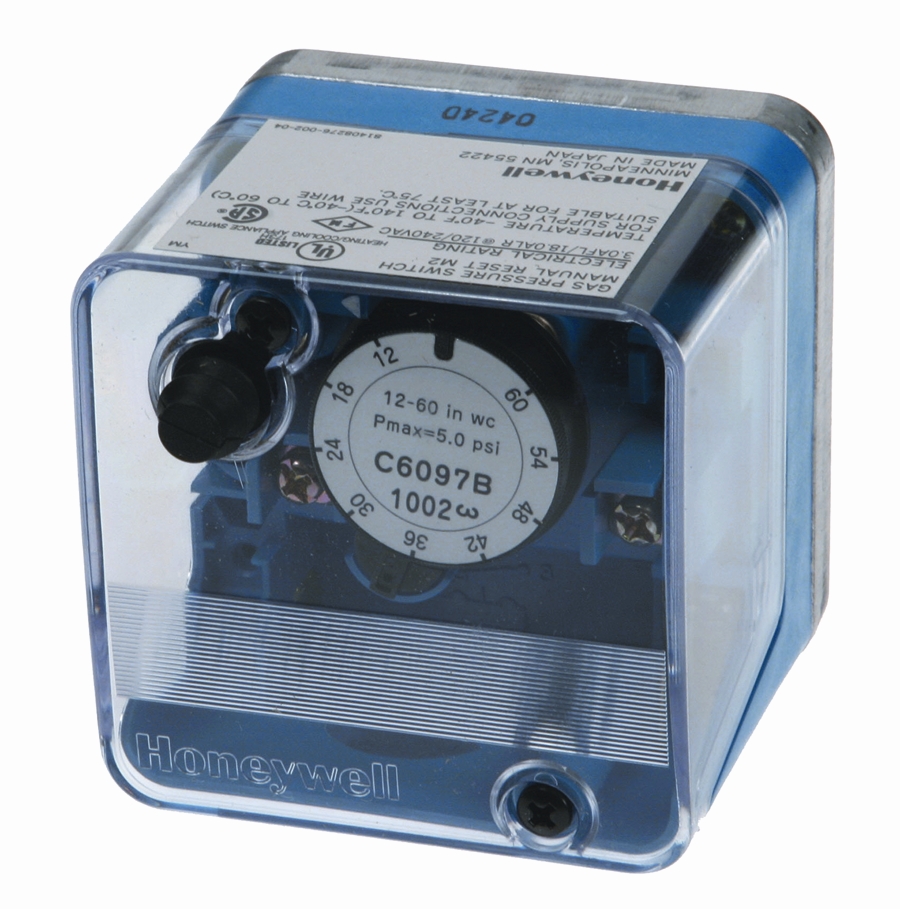

C6097 Pressure switch
