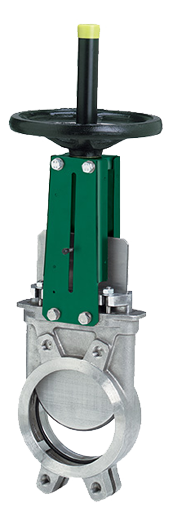

This uni-directional knife gate valve is mainly used for the following applications: water treatment, pulp and paper, powders, etc.

More informations about standard knife gate valve (READ MORE ...)

APPLICATION

General use : Pulp production, water, water treatment, waste water, chemical industry

( powdery or crystallizing products), wine-producing, pulverized products

(cement work, pneumatic transport, stocking).

GENERAL CHARACTERISTICS


- Function ON/OFF or regulation.
- Wafer threaded mounting.
- Unidirectional tightness, direction indication thanks to the arrow on the body.
- Small retention zone: the gate is guided in the body and has little clearance.
- Gland assembly: packing and O-ring (same materials as seat joint) to assure

the elasticity and decrease the operating torque.
- Small head loss.
- Possibility to regulate thick fluids with the adaptation of a diaphragm ring.

WORKING CONDITIONS

Maximum working pressure :

DN 50-250 : 10 bar.

DN 300-450 : 7 bar.

DN 500-600 : 4 bar.

MODELS

1. VG3400-00 - Standard knife gate valve – cast iron body – stainless steel 304 gate – Handwheel operator

2. VG3400-001 - Standard knife gate valve – cast iron body – stainless steel 304 gate – non rising Handwheel

3. VG3400-051 - Standard knife gate valve – cast iron body – stainless steel 304 gate – square operator on non rising stem

4. VGA3430-00 - Rising stem knife gate valve with handwheel – ASA 150

5. VG3400-02 - Standard knife gate valve – cast iron body – stainless steel 304 gate – lever operator

6. VG3400-07 - Standard knife gate valve – cast iron body – stainless steel 304 gate – single acting pneumatic actuator NC

7. VG3400-03 - Standard knife gate valve – cast iron body – stainless steel 304 gate – double acting pneumatic actuator

8. VGA3430-03 - Knife gate valve with double acting pneumatic actuator – ASA 150

9. VG3400-004 - Standard knife gate valve – cast iron body – stainless steel 304 gate – rising stem and ISO mounting plate

10. VG3400-BX4 - Standard knife gate valve – cast iron body – stainless steel 304 gate – BERNARD electric actuator

11. VG3400-UX4 - Standard knife gate valve – cast iron body – stainless steel 304 gate – AUMA electric actuator

12. VG3400-08 - Standard knife gate valve – cast iron body – stainless steel 304 gate – gearbox operator

13. VG3400-01 - Standard knife gate valve – cast iron body – stainless steel 304 gate – Chainwheel operator

14. VG6400-00 - Standard knife gate valve – stainless steel 316 body and gate – Handwheel operator

15. VG6400-001 - Standard knife gate valve – stainless steel 316 body and gate – non rising Handwheel

16. VG6400-051 - Standard knife gate valve – stainless steel 316 body and gate – square operator on non rising stem

17. VG6400-02 - Standard knife gate valve – stainless steel 316 body and gate – lever operator

18. VG6400-07- Standard knife gate valve – stainless steel 316 body and gate – single acting pneumatic actuator NC

19. VG6400-03 - Standard knife gate valve – stainless steel 316 body and gate – double acting pneumatic actuator

20. VG6400-004 - Standard knife gate valve – stainless steel 316 body and gate – rising stem and ISO mounting plate

21. VG6400-BX4 - Standard knife gate valve – stainless steel 316 body and gate – BERNARD electric actuator

22. VG6400-UX4 - Standard knife gate valve – stainless steel 316 body and gate – AUMA electric actuator

23. VG6400-08 - Standard knife gate valve – stainless steel 316 body and gate – gearbox operator

24. VG6400CA-00 - Standard knife gate valve – stainless steel 316 body and gate – Handwheel operator

25. VG6400CA-03 - Standard knife gate valve – stainless steel 316 body and gate – double acting pneumatic actuator
