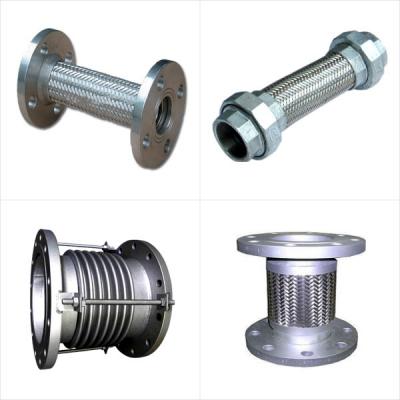

Metallic expansion joints have the same purpose as rubber ones, the protection of installations from vibrations and expansions. They are able to respond to more significant pressures and temperatures than rubber expansion joints.

APPLICATION

Expansion joint.

GENERAL CHARACTERISTICS

- Stainless steel bellow.

- There are 2 types connection: Flanged connection & Socket ends.

Movement:

    + 25 mm.

    + 50 mm

    + 75 mm on request.

WORKING CONDITIONS

Maximum working pressure :

   - 25 bar (DN 15-65)

   - 16 bar (DN 80-200)

   - 10 bar (DN 250-600)

MODELS

1. DI7250 - Metallic expansion joint – steel – flanged.

2. DI7350 - Metallic expansion joint – steel – socket welding end



Metallic expansion joints
