Pressure measurements can be carried out by devices like manometers, pressure switches and pressure sensors.

APPLICATION

Not for viscous or crystallizing liquid, Hydraulic, heating, compressed air and ship building.

GENERAL CHARACTERISTICS

- Body material :  Abs/brass or Stainless steel/brass

- DN 63 - 80 - 100

WORKING CONDITIONS

- Maximum temperature : 0°C / +60°C.

- Working pressure ranges: 0 up to 40 bar.

- Maximum temperature of fluid : 60°C.

MODELS

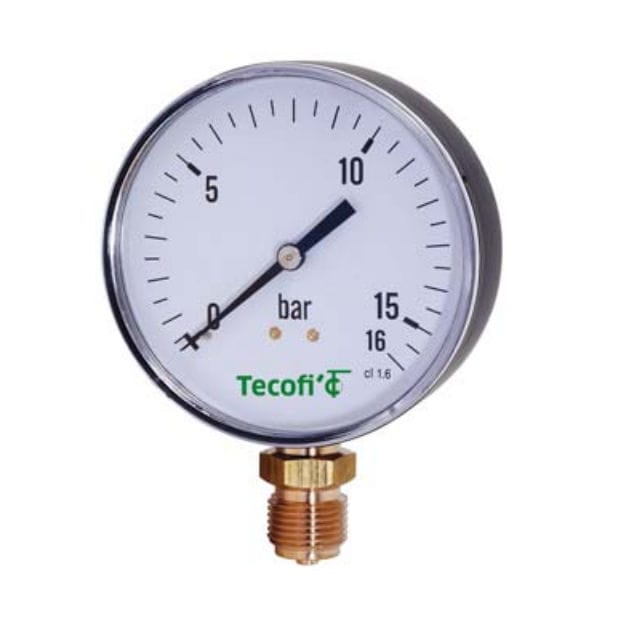

1. MA5100 - Vertical connection pressure gauge with dry casing

2. MA5100 - Vertical connection pressure gauge with dry casing

3. MA5102 - Vertical connection pressure gauge glycerin filled

4. MA5103 - Back connection pressure gauge glycerin filled

5. MA6100 - Vertical connection pressure gauge stainless steel casing

6. MA6105 - Pressure gauge with contact

7. MA6106 - Gas capsule pressure gauge diam.63

8. MA6107 - Gas capsule pressure gauge diam.100

9. MAE9000 - Digital pressure gauge

10. MS6100C100 - Pressure gauge with diaphragm seal – clamp connection

11. MS6100S100 - Pressure gauge with diaphragm seal – SMS connection

12. MS6100G100 - Pressure gauge with diaphragm seal – threaded connection

13. TP6000 - Pressure transmitter – 1/4″

14. TP6001 - Pressure transmitter – 1/2″

15. C6100 - Switch sensor – 1/4″

16. C6101 - Switch sensor – 1/2″

17. BC1100 - Plug valve for pressure gauge – brass – male/female BSP

18. BC1102 - Plug valve for pressure gauge with etalon flange – brass – male/female BSP

19. BC1103 - Ball valve for pressure gauge – PN25/40



Manometers
