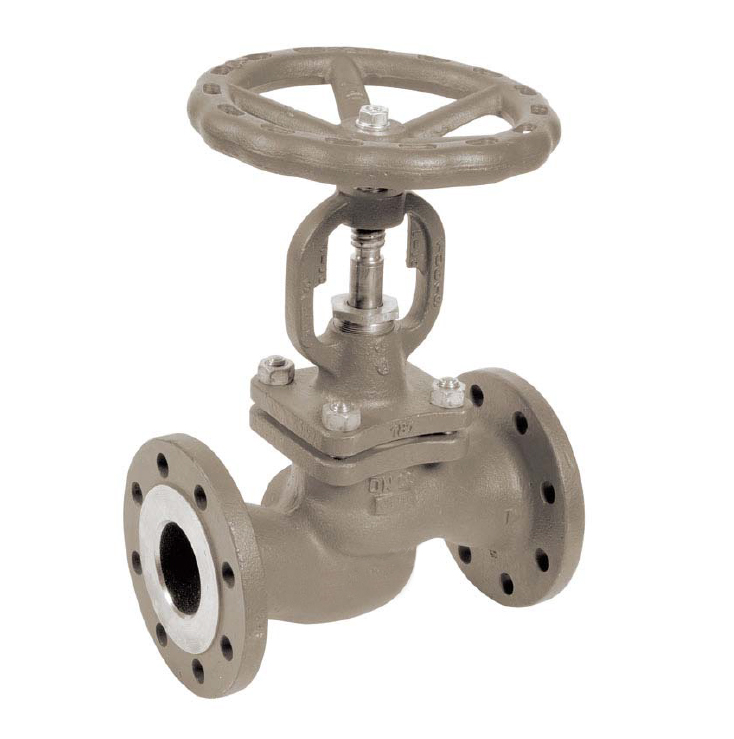

The globe valve’s purpose is to adjust a flow. It can be straight or angular. Tightness is done via the obturator, also called a disk, which lowers onto the seat of the globe valve.

APPLICATION

- Valve for industry for the adjustment of flow-cutting.

- All usual fluids : water,steam, air, hydrocarbon, etc.

GENERAL CHARACTERISTICS

- Bronze body, copper alloy bonnet - copper alloy/PTFE seat.

- Cast iron body and bonnet, stainless steel seat.

From DN15 to DN300.

- Operating by steel paint handwheel.

WORKING CONDITIONS

- Maximum working temperature : -20°C / +400°C

MODELS

1. R2148 - Globe valve – bronze – PN20

2. R6150 - Globe valve – stainless steel – PN16

3. R3240 - Globe valve – cast iron – PN16

4. R5260 - Globe valve – steel – PN40

5. R3243 - Globe valve – cast iron – PN16 – High temperature

6. X3100 - Drain valve – brass – male BSP

Globe valve
