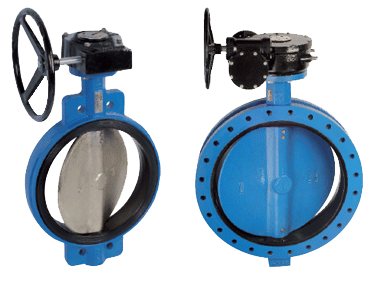

This valve is offered from DN350 to DN1200. This model has the same specifications as the Tecfly for PN10/16 service pressures. There is a wafer type and a flanged version (Teclarge FL).

More informations about butterfly valve with flanges (READ MORE...)

APPLICATION

General use : water, sludge, etc.

GENERAL CHARACTERISTICS

- Design in accordance with NF EN 593.

- Tightness in both ways.

- Sleeve internally reinforced in aluminium giving a low torque.

- Two kinds of construction:

      + wafer type with smooth ears from DN350 to DN600.

      + with middle flange having smooth holes from DN700 to DN1200.

- Self lubricant bearing in copper alloy.

WORKING CONDITIONS

- Maximum working pressure :10 bar / 16 bar.

- Tightness in both ways. Maximum working temperature : -15 °C / +130 °C.

- Peak temperature : -30°C / + 150°C.

MODELS

1. VPE4408-08 - Wafer type butterfly valve PN10 – ductile iron body – ductile iron disc – gearbox operator.

2. VPE4409-08 - Wafer type butterfly valve PN10 – ductile iron body – stainless steel disc – gearbox operator.

3. VPE4408-N03 - Wafer type butterfly valve PN10 – ductile iron body – ductile iron disc – double acting pneumatic operator.

4. VPE4409-N03 - Wafer type butterfly valve PN10 – ductile iron body – stainless steel disc – double acting pneumatic operator.

5. VPE4408-N07 - Wafer type butterfly valve PN10 – ductile iron body – ductile iron disc – single acting pneumatic operator.

6. VPE4409-N07 - Wafer type butterfly valve PN10 – ductile iron body – stainless steel disc – single acting pneumatic operator.

7. VPE4408-B04 - Wafer type butterfly valve PN10 – ductile iron body – ductile iron disc – BERNARD electric operator.

8. VPE4409-B04 - Wafer type butterfly valve PN10 – ductile iron body – stainless steel disc – BERNARD electric operator.

9. VPE4408-U04 - Wafer type butterfly valve PN10 – ductile iron body – ductile iron disc – AUMA electric operator.

10. VPE4409-U04 - Wafer type butterfly valve PN10 – ductile iron body – stainless steel disc – AUMA electric operator.

11. VPE4448-08 - Wafer type butterfly valve PN16 – ductile iron body – ductile iron disc – gearbox operator.

12. VPE4449-08 - Wafer type butterfly valve PN16 – ductile iron body – stainless steel disc – gearbox operator.

13. VPE4448-N03 - Wafer type butterfly valve PN16 – ductile iron body – ductile iron disc – double acting pneumatic operator.

14. VPE4449-N03 - Wafer type butterfly valve PN16 – ductile iron body – stainless steel disc – double acting pneumatic operator.

15. VPE4448-N07 - Wafer type butterfly valve PN16 – ductile iron body – ductile iron disc – single acting pneumatic operator.

16. VPE4449-N07 - Wafer type butterfly valve PN16 – ductile iron body – stainless steel disc – single acting pneumatic operator.

17. VPE4448-B04 - Wafer type butterfly valve PN16 – ductile iron body – ductile iron disc – BERNARD electric operator.

18. VPE4449-B04 - Wafer type butterfly valve PN16 – ductile iron body – stainless steel disc – BERNARD electric operator.

19.VPE4448-U04 - Wafer type butterfly valve PN16 – ductile iron body – ductile iron disc – AUMA electric operator.

20. VPE4449-U04 - Wafer type butterfly valve PN16 – ductile iron body – stainless steel disc – AUMA electric operator.

21. VPE4508-08 - Double flanges type butterfly valve PN10 – ductile iron body – ductile iron disc – gearbox operator.

22. VPE4509-08 - Double flanges type butterfly valve PN10 – ductile iron body – stainless steel disc – gearbox operator.

23. VPE4508-N03 - Double flanges type butterfly valve PN10 – ductile iron body – ductile iron disc – double acting pneumatic operator.

24. VPE4509-N03 - Double flanges type butterfly valve PN10 – ductile iron body – stainless steel disc – double acting pneumatic operator.

25. VPE4508-N07 - Double flanges type butterfly valve PN10 – ductile iron body – ductile iron disc – single acting pneumatic operator.

26. VPE4509-N07 - Double flanges type butterfly valve PN10 – ductile iron body – stainless steel disc – single acting pneumatic operator.

27. VPE4508-B04 - Double flanges type butterfly valve PN10 – ductile iron body – ductile iron disc – BERNARD electric operator.

28. VPE4509-B04 - Double flanges type butterfly valve PN10 – ductile iron body – stainless steel disc – BERNARD electric operator.

29. VPE4508-U04 - Double flanges type butterfly valve PN10 – ductile iron body – ductile iron disc – AUMA electric operator.

30. VPE4509-U04 - Double flanges type butterfly valve PN10 – ductile iron body – stainless steel disc – AUMA electric operator.

31. VPE4548-08 - Double flanges type butterfly valve PN16 – ductile iron body – ductile iron disc – gearbox operator.

32. VPE4549-08 - Double flanges type butterfly valve PN16 – ductile iron body – stainless steel disc – gearbox operator.

33. VPE4548-N03 - Double flanges type butterfly valve PN16 – ductile iron body – ductile iron disc – double acting pneumatic operator.

34. VPE4549-N03 - Double flanges type butterfly valve PN16 – ductile iron body – stainless steel disc – double acting pneumatic operator.

35. VPE4548-N07 - Double flanges type butterfly valve PN16 – ductile iron body – ductile iron disc – single acting pneumatic operator.

36. VPE4549-N07- Double flanges type butterfly valve PN16 – ductile iron body – stainless steel disc – single acting pneumatic operator.

37. VPE4548-B04 - Double flanges type butterfly valve PN16 – ductile iron body – ductile iron disc – BERNARD electric operator.

38. VPE4549-B04 - Double flanges type butterfly valve PN16 – ductile iron body – stainless steel disc – BERNARD electric operator.

39. VPE4549-U04 - Double flanges type butterfly valve PN16 – ductile iron body – stainless steel disc – AUMA electric operator.



Teclarge – Butterfly valve with flanges
