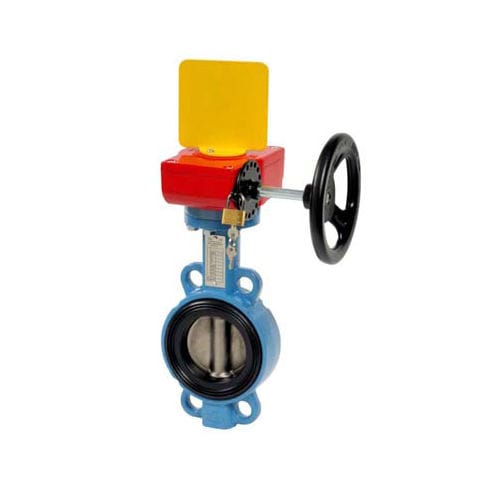

WAFER BUTTERFLY VALVE WITHOUT SENSOR "FIRE NETWORK SPRINKLER"

VP 4448APS-08EP
VP 4448APS-08EP


APPLICATION

General use : sprinkler systems, test piping valves on anti-frost device.

GENERAL CHARACTERISTICS

- From DN125 to DN300.

- Long neck for isolation, wafer type valve.

- Gear box with position indicator, without limit switches contacts.

- Aluminium gear box with locking device

(by steel chain for DN250 and 300) Valve indicator ( indicate valve position : opened or closed )

Between flanges ISO PN10/16 and ISO PN20 ANSI150 Full crossing stem.

CONDITIONS SERVICE

- Maximum working temperature : -10°C / 110°C

- Maximum working pressure: 16 bar

MODELS

1. VP4448APS-08EP - Wafer type butterfly valve – ductile iron body and disc – gearbox without contact – CNPP APSAD

2. VP4449APS-08EP - Wafer type butterfly valve – ductile iron body – stainless steel 316 disc – gearbox without contact – CNPP APSAD

3. VP4448APSFC-08EP - Wafer type butterfly valve – ductile iron body and disc – gearbox with 2 contacts – CNPP APSAD

4. VP4449APSFC-08EP - Wafer type butterfly valve – ductile iron body – stainless steel 316 disc – gearbox with 2 contacts – CNPP APSAD

5. VP4448FM-08EP - Wafer type butterfly valve – ductile iron body and disc – gearbox with 2 contacts – FM

6. VP4449FM-08EP - Wafer type butterfly valve – ductile iron body – stainless steel 316 disc – gearbox with 2 contacts – FM
