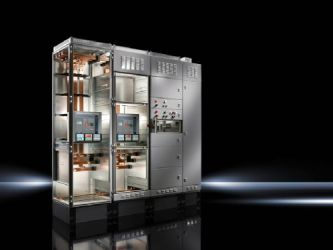

Modular system for low-voltage switchgear with design verification to IEC 61 439-1/-2 and DIN EN 61 439-1/-2 for use as control gear and power distributors up to 5500 A.

DETAILS

Baying systems TS 8, power distribution (READ MORE....)

Baying systems TS 8, for low-voltage switchgear with design certificate to IEC 61 439-1/-2 and DIN EN 61 439-1/-2.

Busbar systems RiLine (READ MORE....)

Up to 1600 A, 60 mm bar centre distance, 3-pole and 4-pole, all-round contact hazard protection, for all the world's markets.

Busbar systems Maxi-PLS (READ MORE....)

Perfect system technology in a super-compact design, simple and infinitely variable attachment on the four attachment levels of the Maxi PLS busbars.

Busbar systems Flat-PLS (READ MORE....)

Various system configurations with standard, commercially available flat copper bars.

Busbar support (185 mm) (READ MORE....)

For flat copper bars 40/60/80/100/120 x 10 mm.

Busbar systems 100 - 185 mm (READ MORE....)

Busbar systems up to 1250 A (100 mm), 1600 A (185 mm), 2500 A (150 mm), 3000 A (150 mm).

Connection system (READ MORE....)

For the coupling of Maxi-PLS and Flat-PLS bars with one another, with RiLine60 rail systems or with power circuit-breakers.

Contact hazard protection system Form 1 (READ MORE....)

To cover different incoming and outgoing sections so that they are safe from finger contact.

Contact hazard protection system Form (READ MORE....)

To cover different incoming and outgoing sections so that they are safe from finger contact.

Compartment configuration Form 1-4 (READ MORE....)

Time-saving system assembly with innovative module components.

Fuse-switch disconnector section configuration (READ MORE....)

Easy installation, perfect contact hazard protection, reliable separation.



Ri4Power Form 1-4
